XRF is an acronym for x-ray fluorescence, a process whereby electrons are displaced from their atomic orbital positions, releasing a burst of energy that is characteristic of a specific element. This release of energy is then registered by the detector in then XRF instrument, which in turn categorizes the energies by element. Here is a detailed breakdown of the process:

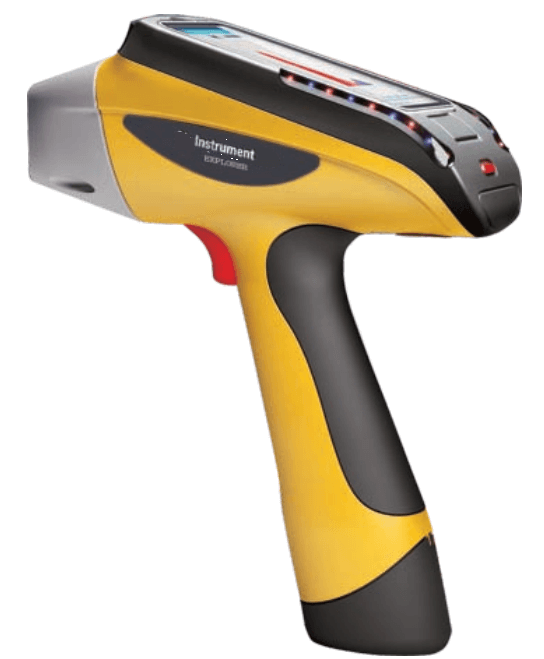

An x-ray beam with enough energy to affect the electrons in the inner shells of the atoms in a sample is created by an x-ray tube inside the handheld analyzer. The x-ray beam is then emitted from the front end of the handheld XRF analyzer. The x-ray beam then interacts with the atoms in the sample by displacing electrons from the inner orbital shells of the atom. This displacement occurs as a result of the difference in energy between the primary x-ray beam emitted from the analyzer and the binding energy that holds electrons in their proper orbits; the displacement happens when the x-ray beam energy is higher than the binding energy of the electrons with which it interacts. Electrons are fixed at specific energies in their positions in an atom, and this determines their orbits. Additionally, the spacing between the orbital shells of an atom is unique to the atoms of each element, so an atom of potassium (K) has different spacing between its electron shells than an atom of gold (Au), or silver (Ag), etc.
